(1) Sending data in the MASTER mode
Required bean name is "I2C1" and the following bean settings: Mode selection - MASTER, Interrupt service - enabled. OnTransmitData event is called at the end of data transmission. SelectSlave method is used for slave address selection and SendBlock method is used for data sending start.

The example demonstrates sending of 2 bytes to the slave.

MAIN.C

byte flags;
byte err;
byte Data[]="AB";
word ret;
#define SLAVE 0x08

void main(void)
{

    :


  /* Set slave address */
  (void)I2C1_SelectSlave(SLAVE);

  /* Clear "Complete" flag */
  flags = 0;

  /* Send bytes in master mode */
  err=I2C1_SendBlock(&Data,2,&ret);
  if(err!=ERR_OK) {
    /* Handle an error */
  }

  /* Wait for communication complete */
  while(!flags) ;


    :

}


EVENTS.C

extern byte flags;

void I2C1_OnTransmitData(void)
{
  flags = 1;		 /* Set "Complete" flag */
}

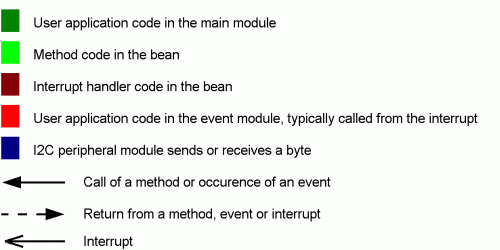

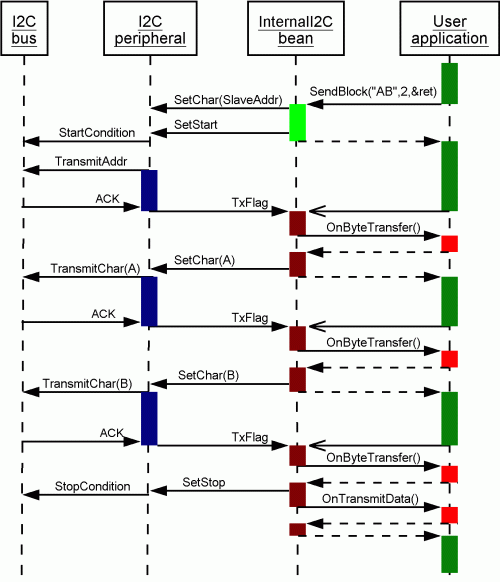

This chart shows sequence of data sending communication flow in the master mode when the address of the slave is sent as an ordinary data byte. In this case OnByteTransfer event is also called after address transmission. If the peripheral supports automatic slave address sending (special address register), OnByteTransfer event is not called after address transmission. See version specific info on General Info page.

(2) Receiving data in the MASTER mode
Required bean name is "I2C1" and the following bean settings: Mode selection - MASTER, Interrupt service - enabled. Event OnReceiveData is called at the end of data reception. SelectSlave method is used for slave address selection and RecvBlock method is used for data reception start.

The example demonstrates receiving of 2 bytes from the slave.

MAIN.C

byte flags;
byte err;
byte Data[2];
word ret;
#define SLAVE 0x08

void main(void)
{

    :

  /* Set slave address */
  (void)I2C1_SelectSlave(SLAVE);

  /* Clear "Complete" flag */
  flags = 0;

  /* Receive bytes in master mode */
  err=I2C1_RecvBlock(&Data,2,&ret);
  if(err!=ERR_OK) {
    /* Handle an error */
  }

  /* Wait for communication complete */
  while(!flags) ;

  /* Now Data field contains received values */


    :

}


EVENTS.C

extern byte flags;

void I2C1_OnReceiveData(void)
{
  flags = 1;		 /* Set "Complete" flag */
}

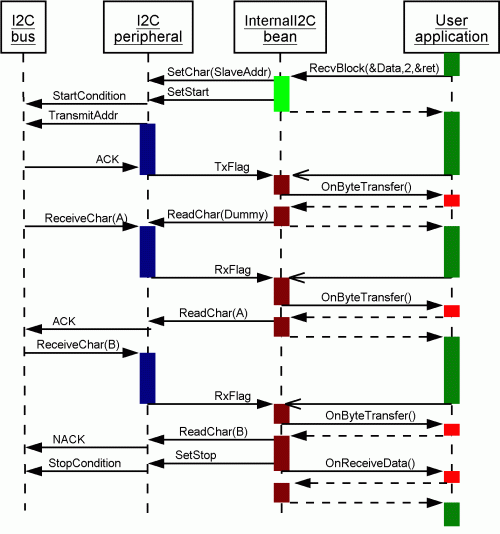

This chart shows a sequence of data receiving communication flow in the master mode if the address of the slave is sent as an ordinary data byte. In this case OnByteTransfer event is also called after address transmission. If the peripheral supports automatic slave address sending (special address register), OnByteTransfer event is not called after address transmission. See version specific info on General Info page.

(3) Sending data in the SLAVE mode
Required bean name is "I2C1" and the ollowing bean settings: Mode selection - SLAVE, Output buffer size - 3. OnTxchar event is sent after each byte sending. OnFreeTxBuf event is called when last byte from the buffer was sent. OnTxEmptyChar event is called when no data is available and Empty character must be sent. SendBlock method is used to prepare data to the output buffer.

The example demonstrates how the slave prepares 2 bytes into the output buffer. Then the master requests 3 bytes to be sent by slave, i.e., the last sent character is the Empty character.

MAIN.C

byte flags;
byte err;
byte data[]="AB";
word ret;

#define TX_CHAR     1    /* Flag for OnTxChar event */
#define BUFFER_FREE 2    /* Flag for OnFreeTxBuf event */
#define TX_EMPTY    4    /* Flag for OnTxEmpty event */

void main(void)
{

    :

  /* Clear "empty" flag */
  flags = 0;

  /* Send bytes in slave mode (prepare to the output buffer) */
  err=I2C1_SendBlock(&data,2,&ret);
  if(err!=ERR_OK) {
    /* Handle an error */
  }

  /* Scan the events */
  do {
    if(flags & TX_CHAR) {
      /* Now all bytes has been sent */
      flags &= ~TX_CHAR;
    }
    if(flags & BUFFER_FREE) {
      /* Now buffer is empty, last character has been sent */
      flags &= ~BUFFER_FREE;
    }
    if(flags & TX_EMPTY) {
      /* Buffer is empty, empty character has been sent */
      flags &= ~TX_EMPTY;
      break;
    }
  }while(1);


    :

}


EVENTS.C

extern byte cntr;
extern byte flags;

void I2C1_OnTxChar(void)
{
  flags |= TX_CHAR;	 /* Set the "TX" flag */
}

void I2C1_OnFreeTxBuf(void)
{
  flags |= BUFFER_FREE;  /* Set the "Buffer Free" flag */
}

void I2C1_OnTxEmptychar(void)
{
  flags |= TX_EMPTY;	 /* Set the "empty" flag */
}

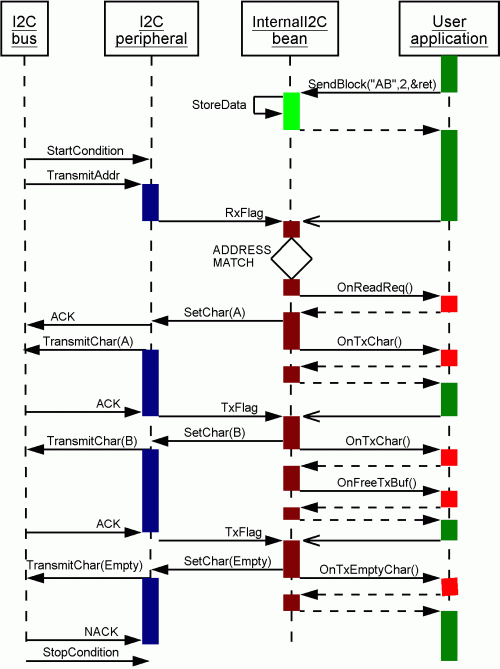

This chart shows sequence of data sending communication flow in the slave mode.

(4) Receiving data in the SLAVE mode
Required bean name is "I2C1" and the following bean settings: Mode selection - SLAVE, Input buffer size - 2. OnRxchar event is sent after each byte reception. OnFullRxBuf event is called when input data buffer is full. RecvBlock method is used for getting the received data from the input buffer.

The example demonstrates how the slave receives 3 bytes from the master. As the slave has only 2 bytes input buffer, OnError event is called and the last received character is lost.

MAIN.C

byte flags;
byte errFlags;
byte err;
byte data[2];
word ret;

void main(void)
{

    :

  flags = 0;       /* Clear flags */
  errFlags = 0;

  while(!flags);   /* Wait for full buffer */

  /* Now the buffer is full. */
  /* If the input buffer was read now the error would not occur */

  /* For demo purpose, wait for error flag */
  /* One more byte has to be received */
  while(!errFlags);

  /* Receive bytes in slave mode (read the input buffer) */
  err=I2C1_RecvBlock(&data,2,&ret);
  if(err!=ERR_OK) {
    /* Handle an error */
  }


    :

}


EVENTS.C

extern byte flags;

void I2C1_OnFullRxBuf(void)
{
  flags = 1;		 /* Set the "full" flag */
}

void I2C1_OnError(void)
{
  errFlags = 1;		 /* Set the "error" flag */
}

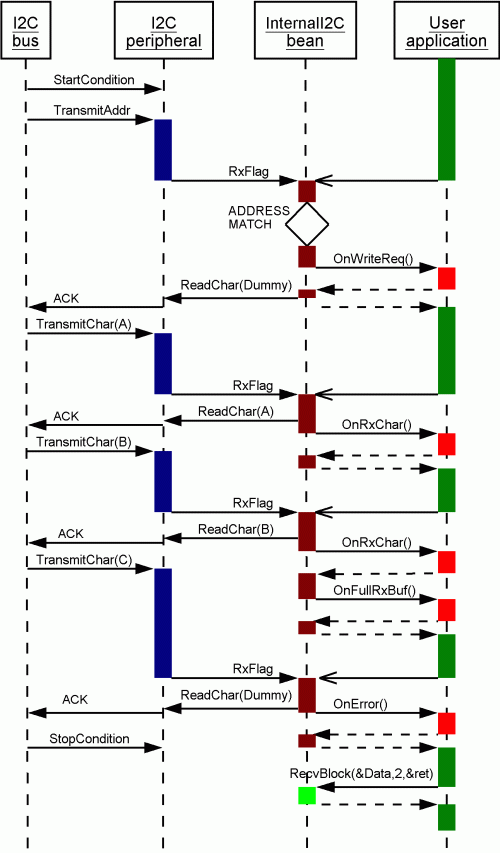

This chart shows sequence of data receiving communication flow in the slave mode.

(5) Sending data in the MASTER mode without interrupts
Required bean name is "I2C1" and the following bean settings: Mode selection - MASTER, Interrupt service - disabled. SelectSlave method is used for slave address selection and SendBlock method is used for data sending.

The example demonstrates sending of 2 bytes to the slave.

MAIN.C

byte err;
byte Data[]="AB";
word ret;
#define SLAVE 0x08

void main(void)
{

    :

  /* Set slave address */
  (void)I2C1_SelectSlave(SLAVE);

  /* Send bytes in master mode */
  err=I2C1_SendBlock(&Data,2,&ret);
  if(err!=ERR_OK) {
    /* Handle an error */
  }

    :

}

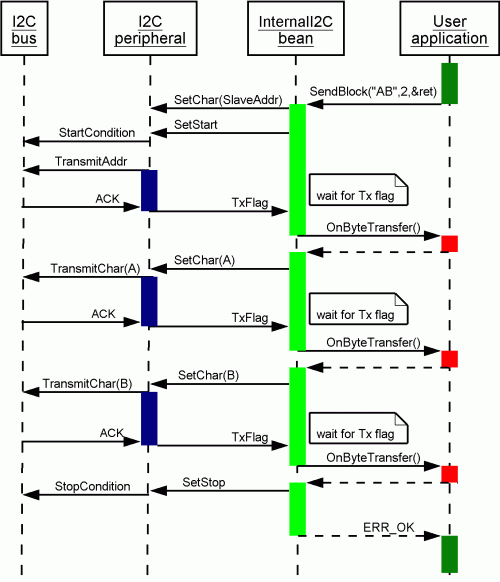

This chart shows a sequence of data sending communication flow in the master mode without interrupts if the address of the slave is sent as an ordinary data byte. In this case OnByteTransfer event is also called after address transmission. If the peripheral supports automatic slave address sending (special address register), OnByteTransfer event is not called after address transmission. See version specific info on General Info page.

(6) Receiving data in the MASTER mode without interrupts
Required bean name is "I2C1" and the following bean settings: Mode selection - MASTER and Interrupt service - disabled. SelectSlave method is used for slave address selection and RecvBlock is used for data reception.

The example demonstrates receiving of 2 bytes from the slave.

MAIN.C

byte err;
byte Data[2];
word ret;
#define SLAVE 0x08

void main(void)
{

    :

  /* Set slave address */
  (void)I2C1_SelectSlave(SLAVE);

  /* Receive bytes in master mode */
  err=I2C1_RecvBlock(&Data,2,&ret);
  if(err!=ERR_OK) {
    /* Handle an error */
  }

  /* Now Data field contains received values */


    :

}

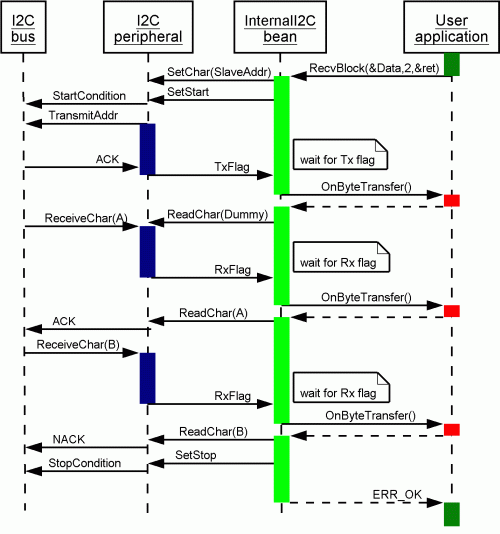

This chart shows sequence of data receiving communication flow in the master mode without interrupts if the address of the slave is sent as an ordinary data byte. In this case OnByteTransfer event is also called after address transmission. If the peripheral supports automatic slave address sending (special address register), OnByteTransfer event is not called after address transmission. See version specific info on General Info page.
