Error Window

Processor Expert | View | Error window

This window displays errors, warnings, and hints that are found during:

• project checking
• code generation,
• running of an external tool.

Some errors are found right after inconsistent or incorrect data have been entered, others during the code generation of a project. The single messages mention the bean where the error was found. If an error concerns two beans (where conflict results for example from using the same on-chip peripheral), the error will be attributed to both beans.

If the user clicks the right mouse button a pop-up menu is shown allowing user to delete either tools or code generation errors, warnings and hints in order to improve the readability of the Error window.

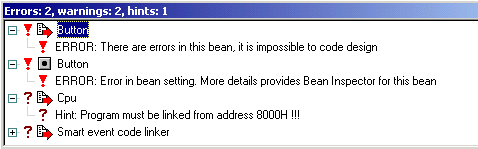

Figure 1 - Processor Expert Error window

Pop-up Menu

The pop-up menu invoked by a right mouse button click contains the following items:

• Delete All Tool Errors, Warnings and Hits - removes all tool errors, warnings and hints listed in the error window
• Delete All code generation errors, warnings and Hints - removes all code generation errors, warnings and hits listed in the Error window
• Copy to Clipboard - copies the whole content of the window as a text to the clipboard.

  Note: This command can be very useful in the case of contacting our support personnel with a bean setup issue.

  ---

• Help - display documentation
