Changing Names of Peripheral Devices

The editor window lists all peripherals names. Initially, on-chip peripheral devices (pins, ports, timers, converters, etc.) have default catalogue names. You may change these names using this editor.

How to Open the Editor.

In order to open the CPU Peripherals Names Editor, follow these steps:

  • Move the mouse pointer to the selected CPU icon on the Project panel.
  • Press the right mouse button - a popup menu will appear.
  • Click on "CPU peripherals names".



Purpose of name changes.

Some beans are associated with on-chip The link between a bean and a peripheral is done by names (not by any internal identification). Therefore, if you change the name of a peripheral to which a bean was linked, an error will occur. The bean's link will no longer be valid.

Fortunately, when you change a peripheral's name, Processor Expert offers to update the name in all the project's beans.

Advantages of the option to change names:

  • Peripheral names may express the reality of the CPU environment, making the project more understandable.
  • When working with several processors (having different peripheral names), one may assign a project-specific name in order to facilitate the CPU changes in the project.
    Example: Timer0 of CPU1 and TmrA of CPU2 have the same function in the project. They are both associated with Bean1:TimerOut. Every time you change the Target CPU from CPU1 to CPU2 and vice versa, you need to modify in the Bean Inspector the name of the peripheral linked to the TimerOut bean. To avoid this, you can rename Timer0 and TmrA to one common name - MyTimer - and link the bean (Bean1) to the MyTimer peripheral. Now, when CPU1 will be set active (selected as target CPU), Bean1 will be linked to Timer0, and when CPU2 will be set active, Bean1 will be linked to TmrA.



How to Edit CPU Peripheral Names.

Follow these steps:



  • Select a peripheral type in order to display all the CPU peripherals of this type.
  • In the Name edit box, insert a new name for the selected CPU peripheral.
    Note: If you want to get back the default catalogue name, press the left-arrow button.
  • Press the OK button.
  • Answer the confirmation request of the dialog box.

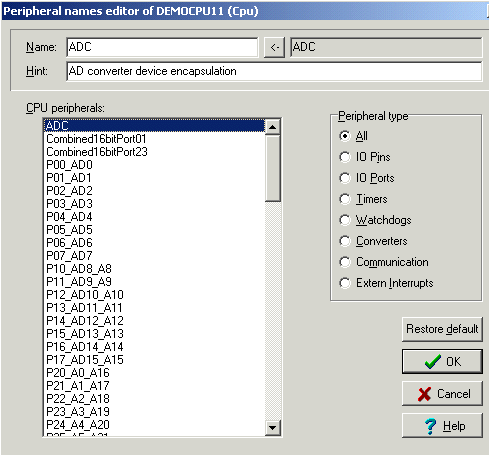

Figure 1 - CPU Peripheral Names Editor
